Products - Fire Hoses

HOSE PIPE RRL Type A

  • Forestry Light Weight, Self-Protecting, Attack Hose
  • Circular woven Jacket made up of 100% Polyester yarn
  • Smooth Rubberized Water Way for Uniform Controlled Percolation and Even Wetting
  • Flame Resistant
  • Also used in for Irrigation, Bush Fires any other Unmanned Areas
  • ISI Marked
  • Conforming to Australian Standard 2792-92, Canadian Standard

Fire Hoses | National Fire Services | Vapi

Technical Specification :

Diameter Bursting Pressure Working Pressure
in mm in inch in bar in psi in bar in psi
25 1 50 725 18 260
38 1 1/2 50 725 18 260
45 1 3/4 50 725 18 260
52 2 45 650 17 250
65 2 1/2 45 650 17 250
70 2 3/4 45 650 17 250



TYPE B ( CP Hose )

  • Designed for Aggressive Fire Fighting Applications
  • Circular woven Jacket made up of 100% Polyester yarn
  • High Quality Synthetic EPDM Rubber Lining
  • External Coating of specially formulated Synthetic Elastomer
  • Heat and Abrasion Resistant
  • ISI Marked
  • Germanischer Lloyd's Approved
  • M.E.D. 96/98/EC Approved
  • Conforming to BS 6391:2009 Type 2
  • Available Colors – Red.

Fire Hoses | National Fire Services | Vapi

Diameter Bursting Pressure Working Pressure
in mm in inch in bar in psi in bar in psi
25 1 60 870 18 260
38 1 1/2 60 870 18 260
45 1 3/4 60 870 18 260
52 2 55 800 17 250
65 2 1/2 55 800 17 250
70 2 3/4 50 725 16 235
76 3 45 650 14 205
102 4 40 80 12 175
127 5 35 510 10 145
152 6 30 435 10 145

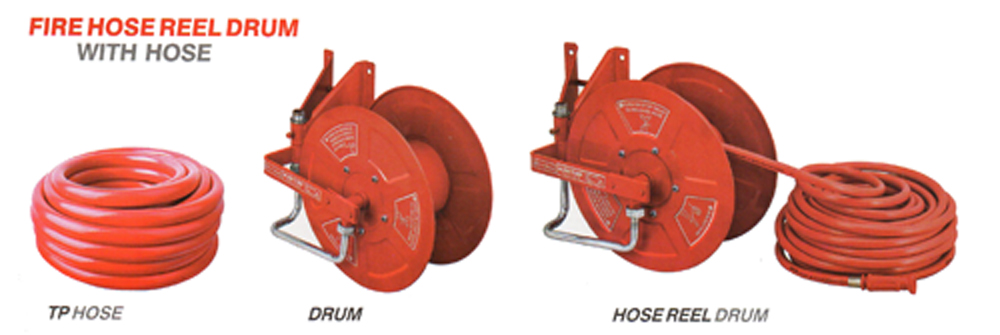

Fire Hose Reel Drum

Fire Hoses | National Fire Services | Vapi

Type Type 1 Type Fixed & swing arm type
Design Standerd IS 12585 Design Standerd IS 884
Certification ISI Certification -
Test Pressure 10.2 Kg/Cm2 Test Pressure 21 Kg/Cm2
Material Thermoplastic Hybrid compound Material MS Frame with rubber / Plastic Hose
Size
 20 mm x 30 length & Size 3/4" (20 mm) x 30 mm in length
25 mm x 30 length 1" (25 mm) x 30 mm in length (complete drum)

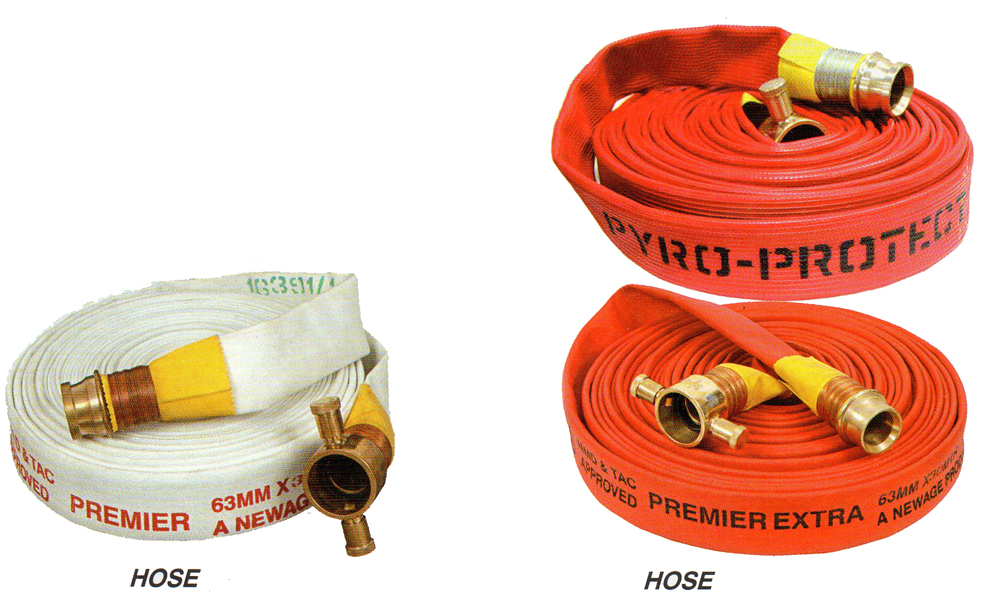

Rubberized Fire Hose

Fire Hoses | National Fire Services | Vapi

Type Type A Type CP
Design Standerd IS 636 Design Standerd IS 8423
Certification ISI Certification ISI
Test Pressure 21 Kg/Cm2 Test Pressure 21 Kg/Cm2
Material Cotton Hose with Rubber PVC Coating Inside Material Cotton or synthetic material or their combination
Size 63 mm in 15 & 30 length Size 63 mm in 15 & 30 length
